High quality power and control cables engineered for industrial, residential and commercial applications.
Residential, Commercial & Industrial
Relay Equipment & Switch Yard
Overhead Power Distribution
Solar Plant Applications
Process Control & Automation
Machine Tools & Equipment
UPS / Battery Backup Systems
Pumps & Motors Wiring
Heavy Duty Industrial Usage

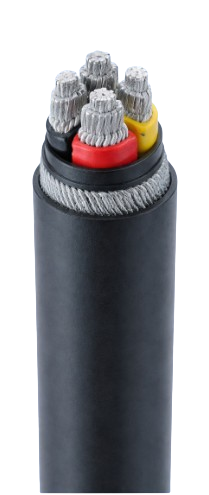

Aluminium / Annealed plain copper solid / stranded conductor.
Cross linked polyethylene (XLPE)
| Core | Colour Identification |
|---|---|
| Single Core | Red or Black |
| 2 Core | Red, Black |
| 3 Core | Red, Yellow, Blue |
| 3.5 Core | Red, Yellow, Blue, Black |
| 4 Core | Red, Yellow, Blue, Black |
| 5 Core & Above | Black colour with number printing |
Insulated conductors are laid up together, if necessary interstices may be filled with fillers.
Non-hygroscopic Poly propylene fillers are included between laid up cores wherever required.
A separator tape of non-hygroscopic poly propylene material is applied over laid up core wherever necessary.
Extruded PVC compatible with operating temperature.
For Single Core : Aluminium round wire / flat wire.
For Multi-core : Galvanized Steel wire / strip armour.
Extruded PVC / Special PVC compound such as Flame Retardant (FR), Flame Retardant Low Smoke (FRLS), Low Smoke Zero Halogen (LSOH) can be used for outer sheath to suit a variety of environment and fire risk conditions.
Outdoor distribution in rural or residential areas. Offers cost effective safer and reliable alternative for overhead distribution.
LV Cables with XLPE, PVC or PE insulation with XLPE insulation.
Specially formulated for exposure to sunlight and outdoor applications.
UV, PE or PE is coated with carbon black. MV cable insulated and screened cores are PVC sheathed.
XLPE : Max 90°C
PVC or PE : Max 70°C
Insulated phase cores of hard drawn aluminium alloy wires laid together around high tensile insulated or bare messenger.
If a messenger is provided, as the tension member, the phase conductors can operate at maximum allowable tension.
For LV 10 times & MV 15 times cable diameter.
1000 W / sq.m

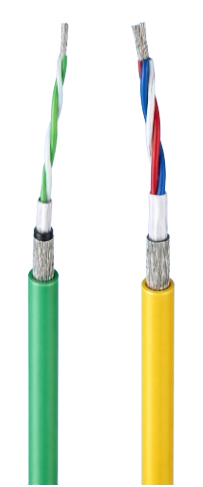

Thermocouple extension and compensating cables are specially engineered for interconnection between thermocouple probes, sensors and industrial control instrumentation systems.
Unarmoured cables with conductors insulated with PVC and twisted together in pairs with overall PVC sheath.
Armoured cables with galvanized steel wire armour and PVC sheath for additional mechanical protection.
| Conductor | Solid type |
| Insulation | PVC / PE / XLPE / LSOH |
| Elements | Pairs / Triads |
| Screen | Aluminium polyester tape with drain wire |
| Armouring | Galvanized steel wire |
| Sheathing | PVC / FR PVC / FRLS / LSOH |

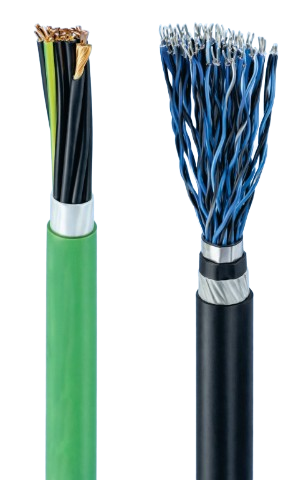

Instrumentation cables are widely used for process control, industrial automation, communication systems and signal transmission applications across various industries.
| Conductor | 0.5 sq.mm to 2.5 sq.mm stranded tinned copper |
| Insulation | PVC / PE / XLPE / LSOH |
| Elements / Core | Pair / Triad / Quad |
| Screening | Aluminium polyester tape with drain wire |
| Element Laying | Concentric formation |
| Armouring | Unarmoured / GS wire armoured |
| Sheathing | PVC / FR PVC / FRLS / LSOH |
